Overview |
|
Intended Users |
|
| Manufacturer Product Number | RR18516 | ||||
| 18.5’’ (47 cm) | |||||
| Seat Depth | 16″ (41 cm) | ||||
| Seat Angle | 12˚ | ||||
| Seat Height | 19.3” (49 cm) at front of seat
16.5” (42 cm) at back of seat Seat height measurement is based on 15.5” (39 cm) seat width. Seat height varies +/1.2” (3.05 cm) with other seat widths. Variance in seat height affects back height, and back angle bend. |
||||
| Back Height | Adjustable, 14”, 16”, 18” (36 cm, 41 cm, 46 cm) | ||||
| Back Angle | Lower back support angle: fixed at 8˚
Upper back support angle: 8˚, 12˚, 15˚, custom Upper back support angle describes the angle of the back above the lumbar area. At 8.75” (22 cm) above the seat the back tilt increases from 8˚ to desired tilt. |
||||

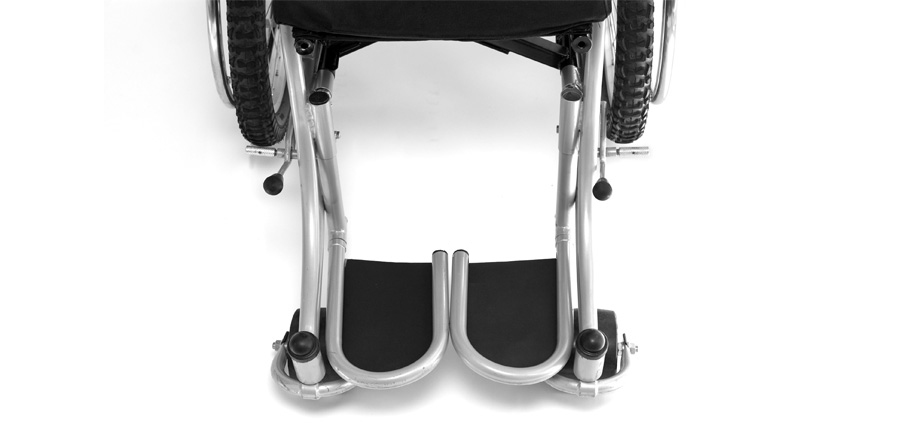

| Footrest Height | 12” – 17’’ (30 cm – 43 cm) from seat to footrest | ||||

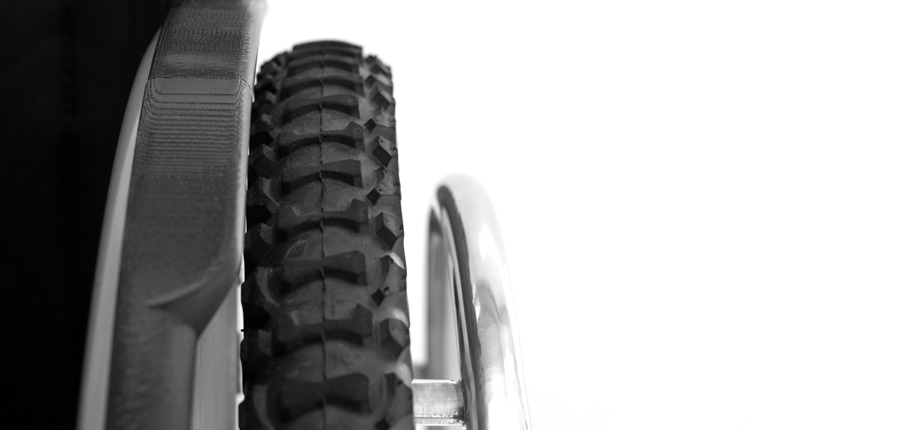

| Rear Wheel Dimensions | 24” x 1.75” (61 cm x 4 cm) standard size
1.5” – 2.1” (4 cm – 5 cm) wide tires available for all sizes |
||||
| Rear Wheel Axle Adjustability | 5-position adjustable +/0.8” | ||||
| Caster Dimensions | 4.5” x 3” (11 cm x 8 cm) | ||||
| Overall Width Open | 21.5” – 28.5” (55 cm – 72 cm) | ||||
| Overall Width Closed | 14″ (36 cm) including rear wheels | ||||
| Overall Length | 36” – 39” (91 cm – 99 cm)
Overall length is the distance from the front to the back of the chair. This distance varies with axle position. |
||||
| Product Weight | 44 lb (20 kg) with Whirlwind Super Duty Mountain Bike Wheels | ||||
| Weight Capacity | 220 lb (99.8 kg) max rider – tested weight | ||||
| Packaging | One unit per carton | ||||
| Package Size | 37″ x 13″ x 25.6″ (94 cm x 33 cm x 65 cm) | ||||
| Package Weight | 61.7 lb (28 kg) | ||||
