Motivation Rough Terrain Wheelchair

Brochures and datasheets for this product are available on request — use the quote form or WhatsApp above and our team will send them across.

Details

Description

Overview

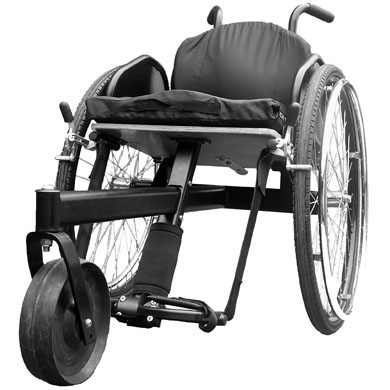

Robust and sturdy three-wheel active wheelchair with a large rubber caster wheel, large 26” (66 cm) rear wheels, and a long wheelbase that allows for safe and stable mobility over uneven ground
Provides a range of adjustable features to ensure optimal fitting and comfort
Intended for use outdoors and for limited use indoors; suitable for use in rugged conditions and on uneven surfaces
The length and weight of this wheelchair limits its ability to be transported easily

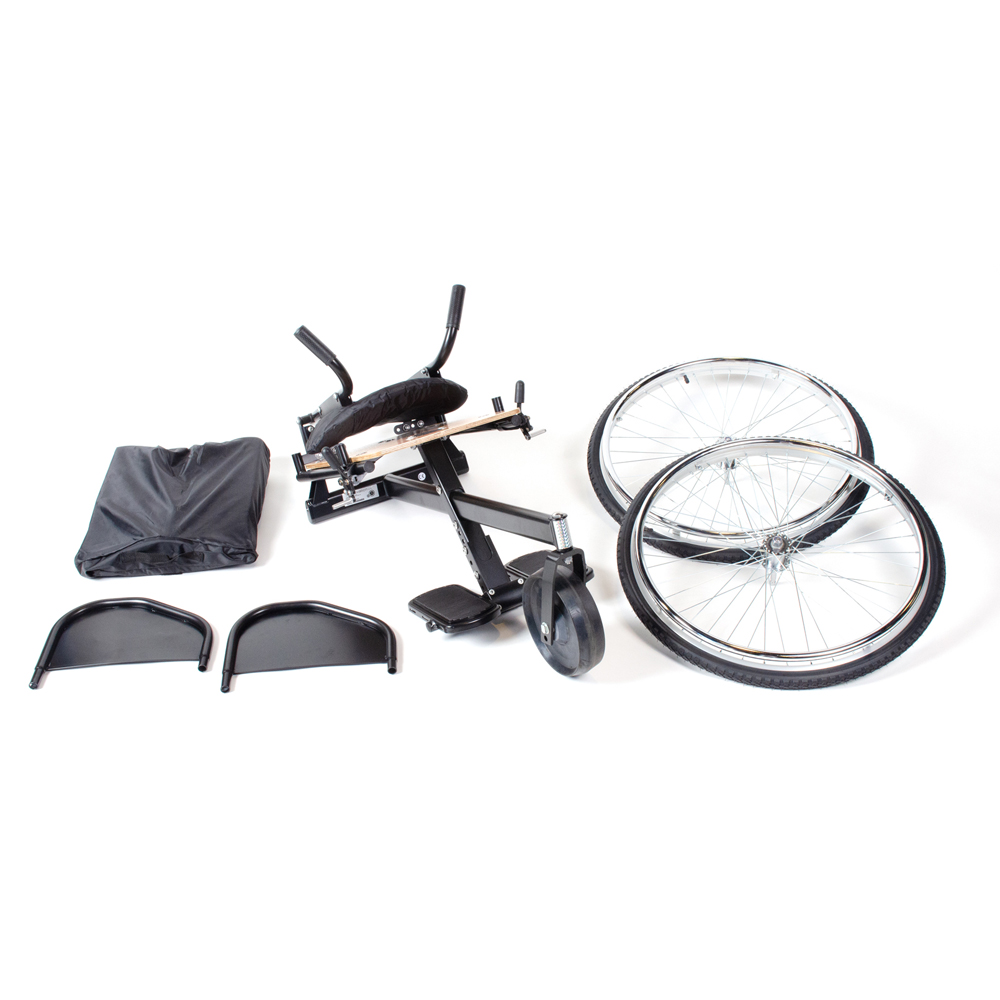

Each chair comes with a foam pressure relief cushion, basic tool kit, and tire repair kit
The Rough Terrain can be converted into a tricycle by attaching Motivation’s Clip-on Tricycle.

Intended Users

Intended for active adult users, older adults (over 65 years old), and teenagers/older children who use the wheelchair as their primary method of mobility and do not require postural support that exceeds the support features of the Motivation Rough Terrain wheelchair

PRODUCT DETAILS

Rigid frame is powder coated steel with zinc coated fasteners and aluminum components
Solid seat base for a durable sitting platform
Includes a contoured pressure relief cushion suitable for all users and for users with high risk of pressure sores. Cushion allows for comfortable sitting over long periods and gives good postural support. The cushion has a removable and washable water-resistant cover.
Padded seat and back
Comes with a height adjustable sacral pad

- Adjustable backrest height and angle
- Removable armrests
- Backrest folds down
- Tire repair kit
- Basic tool kit for maintenance
- Estimated assembly time: 30 minutes
- Certifications: ISO 7176, CE Mark, ISO 13485, ISO 14001

SIZES

Manufacturer Product Number			WM3-01XL
Seat Width			18.9” (48 cm)
Seat Depth	The seat base and the cushion can be adjusted to three different depths: 15.7”, 17.3”, 18.9” (40 cm, 44 cm, 48 cm)
Back Height	The backrest can be set in two height positions: high and low; the high position is 3.1″ (8 cm) higher than the low position
Back Angle	The backrest can be set to three angles: upright, middle, and back with a total adjustment range of 8°
Footrest Height	The footrest can be adjusted to 11 different heights with a range of 4.7” (12 cm)
Rear Wheel Dimensions	26″ x 1.4″ (66 cm x 4 cm) diameter rear wheels, with 36-spoke aluminum rims, robust 36-spoke hub with two 6001zz bearings and 0.47” (1.2 cm) diameter quick release axles
Rear Wheel Axle Adjustability	The center of gravity can be set in active and safe rear wheel positions; the safe position is 2.8″ (7 cm) further back than the active
Caster Dimensions	One rubber caster wheel, diameter: 8.7” (22 cm); width: 2.4” (6 cm)
Overall Width Open	29.1” (74 cm)
Overall Height Closed	18.6” (47 cm)
Overall Length	47.7” (121 cm) 68.9” (175 cm) with Motivation Clip-On Tricycle
Product Weight	S: 49.2 lb (22.3 kg); M: 49.6 lb (22.5 kg); L: 50 lb (22.7 kg); XL: 50.5 lb (22.9 kg)
Weight Capacity	250 lb (113 kg)
Packaging	One unit per carton
Package Size			35.4″ x 26.8″ x 13.8″ (90 cm x 68 cm x 35 cm)
Package Weight		61.7 lb (28 kg)

Specifications

Technical specifications

Overview	Robust and sturdy three-wheel active wheelchair with a large rubber caster wheel, large 26” (66 cm) rear wheels, and a long wheelbase that allows for safe and stable mobility over uneven ground Provides a range of adjustable features to ensure optimal fitting and comfort Intended for use outdoors and for limited use indoors; suitable for use in rugged conditions and on uneven surfaces The length and weight of this wheelchair limits its ability to be transported easily Each chair comes with a foam pressure relief cushion, basic tool kit, and tire repair kit The Rough Terrain can be converted into a tricycle by attaching Motivation’s Clip-on Tricycle .
Packaging	One unit per carton
Back Angle	The backrest can be set to three angles: upright, middle, and back with a total adjustment range of 8°
Seat Depth	The seat base and the cushion can be adjusted to three different depths: 15.7”, 17.3”, 18.9” (40 cm, 44 cm, 48 cm)
Back Height	The backrest can be set in two height positions: high and low; the high position is 3.1″ (8 cm) higher than the low position
Intended Users	Intended for active adult users, older adults (over 65 years old), and teenagers/older children who use the wheelchair as their primary method of mobility and do not require postural support that exceeds the support features of the Motivation Rough Terrain wheelchair
Overall Length	47.7” (121 cm) 68.9” (175 cm) with Motivation Clip-On Tricycle
Product Weight	S: 49.2 lb (22.3 kg); M: 49.6 lb (22.5 kg); L: 50 lb (22.7 kg); XL: 50.5 lb (22.9 kg)
Footrest Height	The footrest can be adjusted to 11 different heights with a range of 4.7” (12 cm)
Weight Capacity	250 lb (113 kg)
Caster Dimensions	One rubber caster wheel, diameter: 8.7” (22 cm); width: 2.4” (6 cm)
Overall Width Open	29.1” (74 cm)
Overall Height Closed	18.6” (47 cm)
Rear Wheel Dimensions	26″ x 1.4″ (66 cm x 4 cm) diameter rear wheels, with 36-spoke aluminum rims, robust 36-spoke hub with two 6001zz bearings and 0.47” (1.2 cm) diameter quick release axles
Rear Wheel Axle Adjustability	The center of gravity can be set in active and safe rear wheel positions; the safe position is 2.8″ (7 cm) further back than the active
