Spirometer – Spirolab

Description

Portable, Desktop and PC-Based Spirometer, with Oximetry Option

7-inch Touchscreen, all-in-one Spirometer with embedded printer and Oximetry option.

Real-time test also available on PC, via USB and Bluetooth.

Perfect suite in Hospitals and Ashtma camps, with its fast and silent built–in thermal printer with customizable printout format.

Lightweight for easy mobility, carrying case included, long life Rechargeable Battery.

GLI predicted sets available in Stand-Alone mode and PC mode.

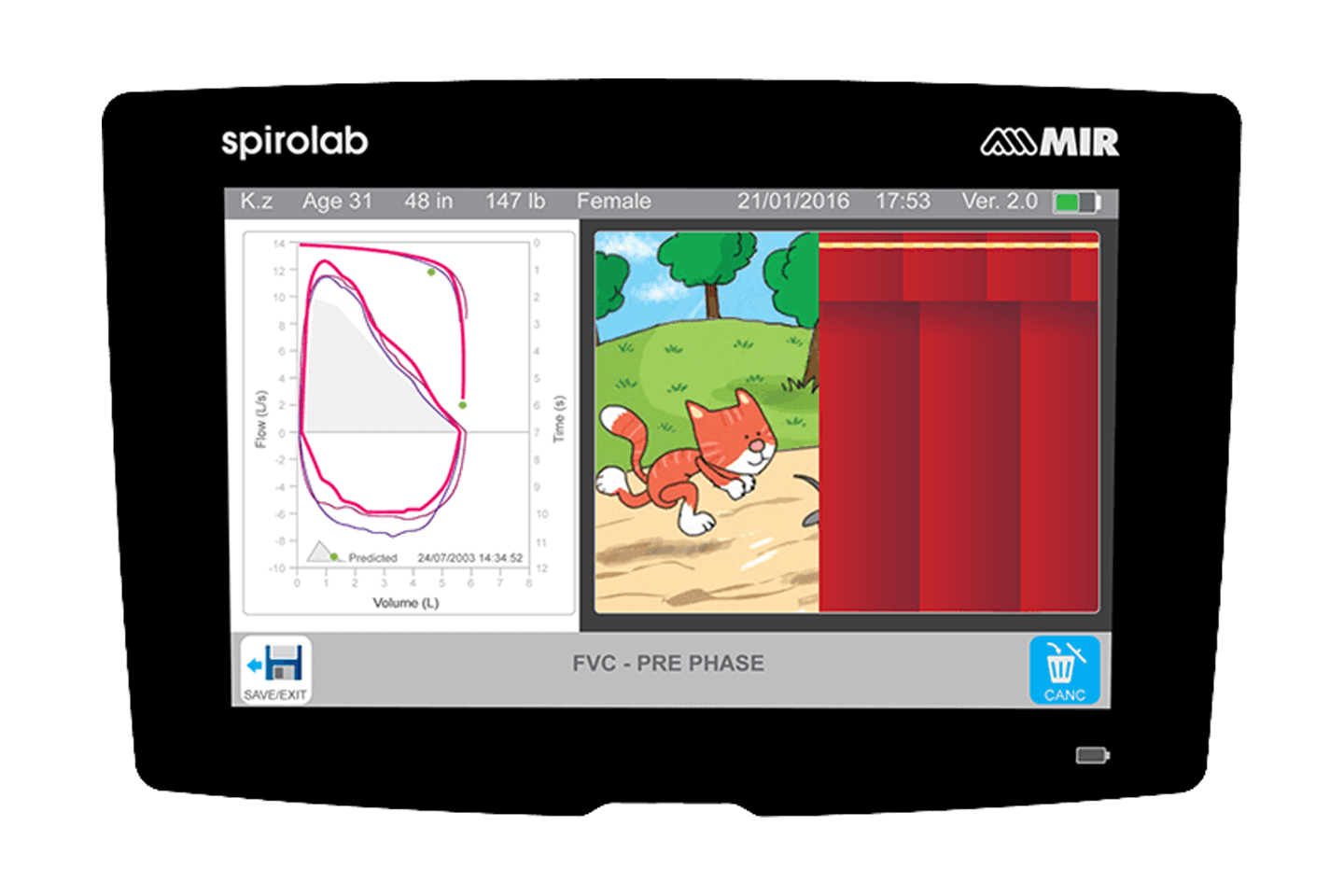

Pediatric Incentive available on display, to improve patients’ compliance during the test.

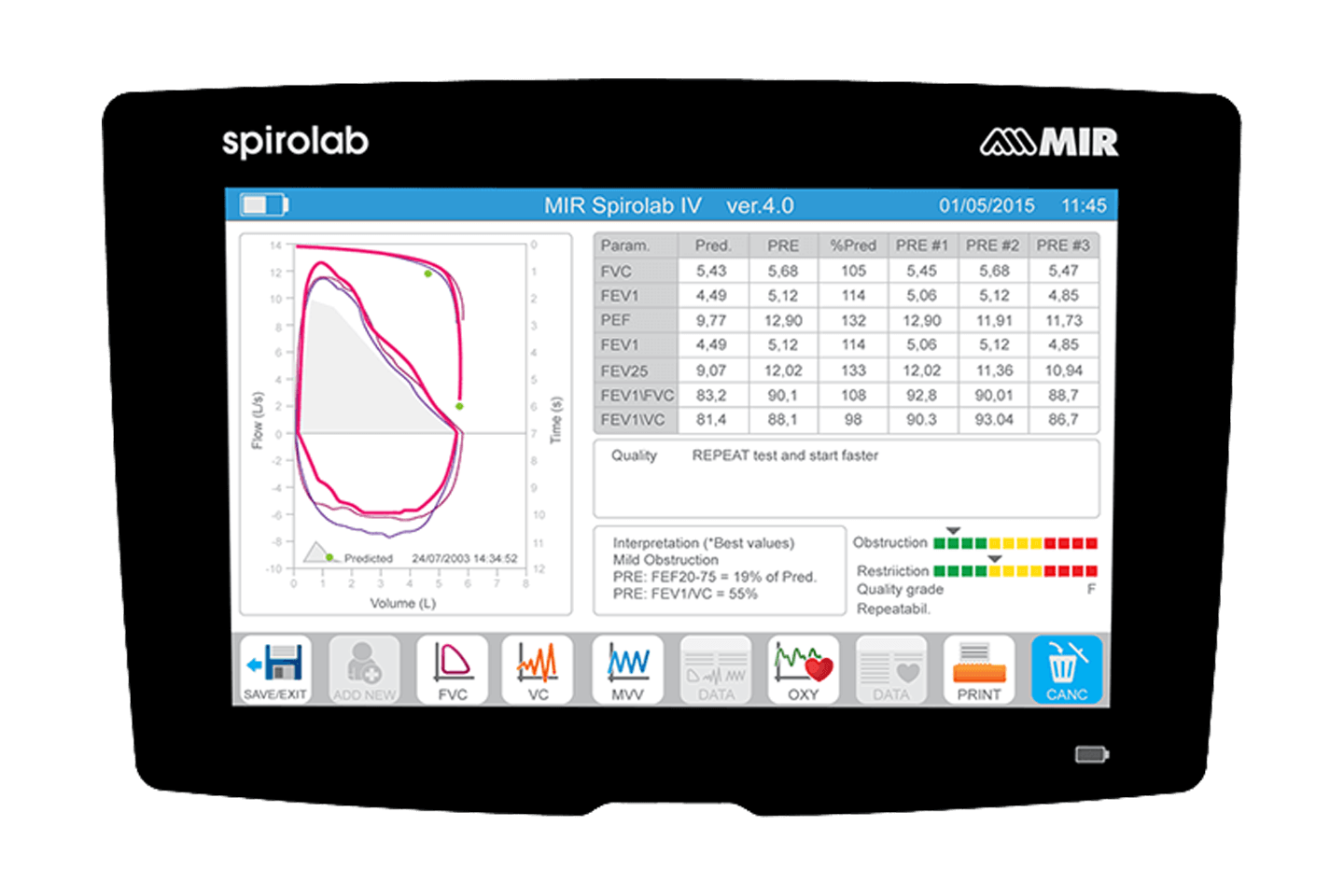

REAL-TIME TEST

MEASURED PARAMETERS

Spirometry: FVC, FEV1, FEV1/FVC%, FEV1/PEF, FEV1/VC, FEV1/FEF0.5, DTPEF, FEV 0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, PEF, FEF25, FEF50, FEF75, FEF2575, FEF7585, FET, Vext, ELA, EVOL, FIVC, FIV1, PIF, FIV1/FIVC, FIF25, FIF50, FIF75, R50, MVVcal, PIF, IRV, VC, EVC, IVC, IC, ERV, IRV, FEV1/VC, TV, VE, RR, ti, te, ti/t-tot, TV/ti, MVV

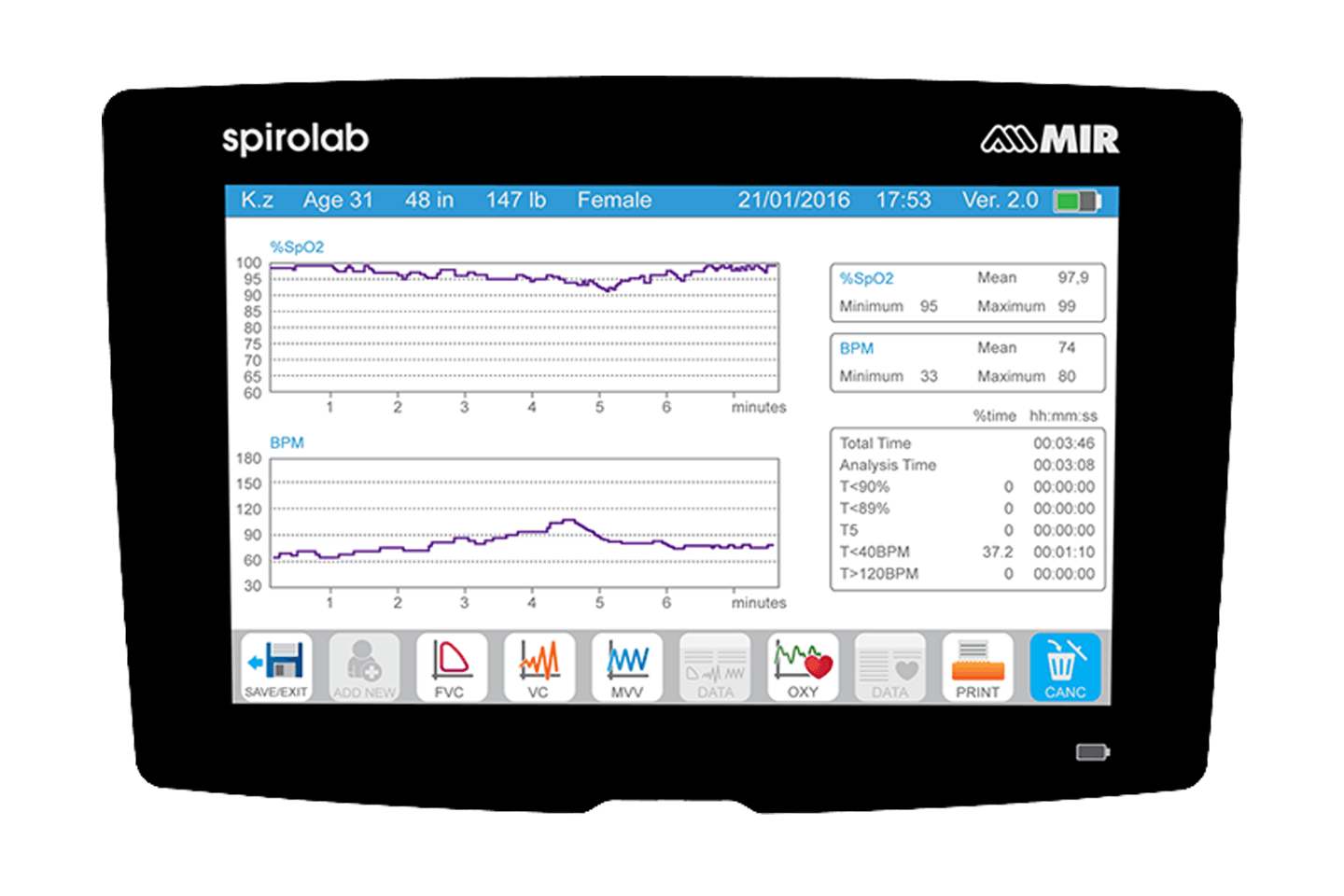

Oxymetry (optional): SpO2% (min, max, average), BPM (min, max, average), Test duration, % Bradycardia Duration (<40 BPM), % Tachycardia Duration (>120 BPM), % of Time with SpO2 ≤ 90% (T90%, T89%), T5

CARRY EVERYWHERE

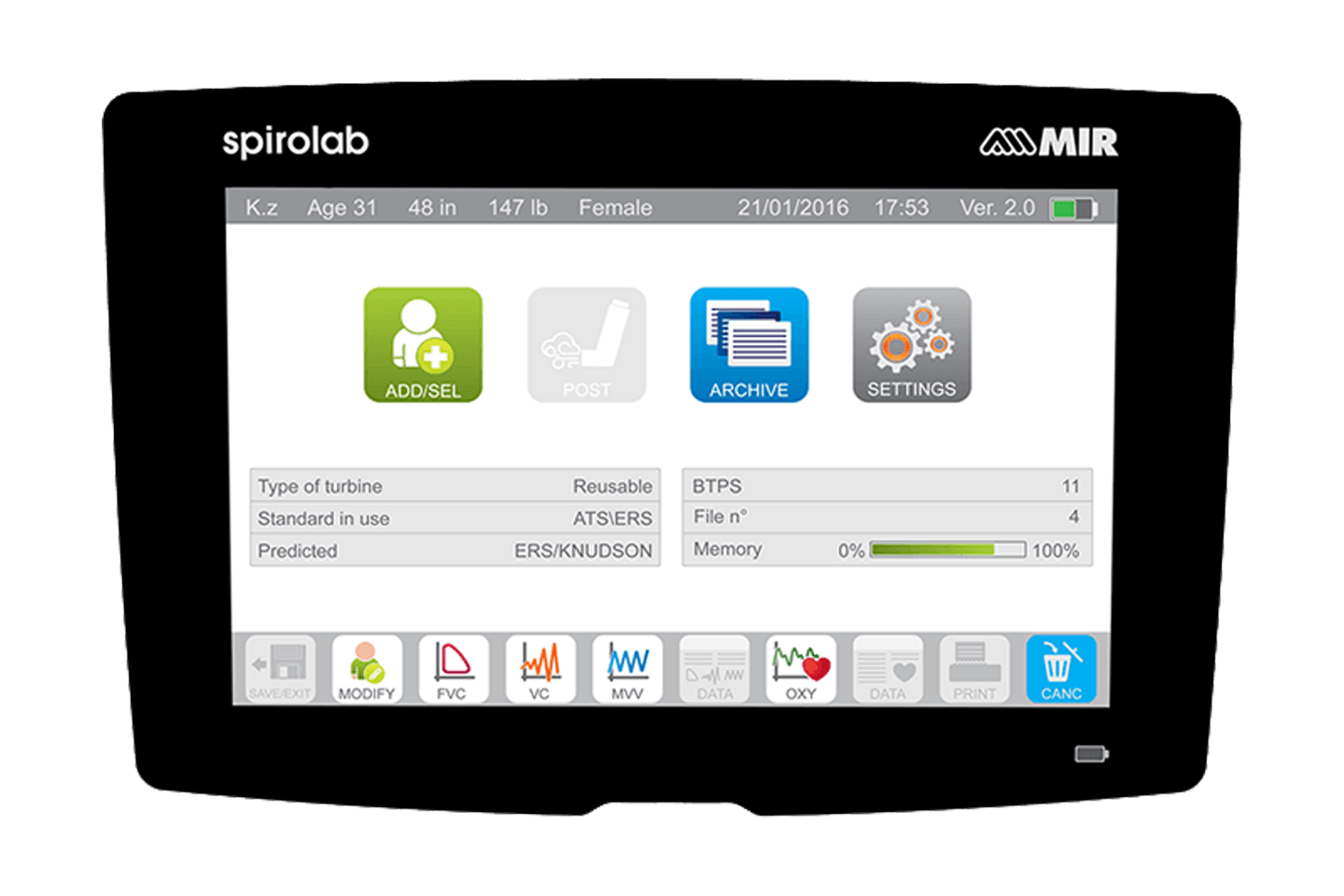

High-Resolution 7″ LCD Color Touchscreen Display with real time curve and test results

Long lasting NiMH battery, rechargeable via power supply

Internal Storage up to 10.000 Spirometry tests or 300 hrs oximetry

Dimensions: 8.6 x 8.3 x 2”; (220×210×51 mm)

Embedded Printer (for thermal paper 112 mm)

PC CONNECTION

Connect to your PC via USB and Bluetooth 2.0

ALWAYS INCLUDED

– USB cable – for PC connection

– Power supply/battery charger with adapter for Europe, UK, USA-Japan or Australia

– 1 Roll of thermal printer paper for the first 80 tests

– Noseclip as recommended by ATS/ERS guidelines

– Carrying case to carry on the go

– Finger Probe included with the Oximetry Option
