Spirometer – Spirodoc

Handheld, Stand-alone and PC-Based Spirometer, with Oximetry option

Touchscreen Spirometer and 3D Oximeter: 6MWT, Sleep Test, 24h SpO2 Holter.

Detachable flowmeter head to facilitate Oximetry Test during 6 Minute Walk Test.

Two International Patents granted for this product: Design Copywrite and Multifunctional capabilities.

Wireless Real-Time Test also available on PC, via Bluetooth and USB.

Lightweight and easy to carry on-the-go, with long-life Rechargeable Battery.

Unique feature: can be configured for both Doctor’s Office or for Patient Home use

REAL-TIME TEST

MEASURED PARAMETERS

Spirometry: FVC, FEV1, FEV1/FVC%, PEF, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, FEF25, FEF50, FEF75, FEF2575, FET, EVol, ELA, FIVC, FIV1, FIV1/FIVC%, PIF, VC, IVC, IC, ERV, FEV1/VC%, TV, VE, RR, tI, tE, tI/tTot, VT/tI, MVV

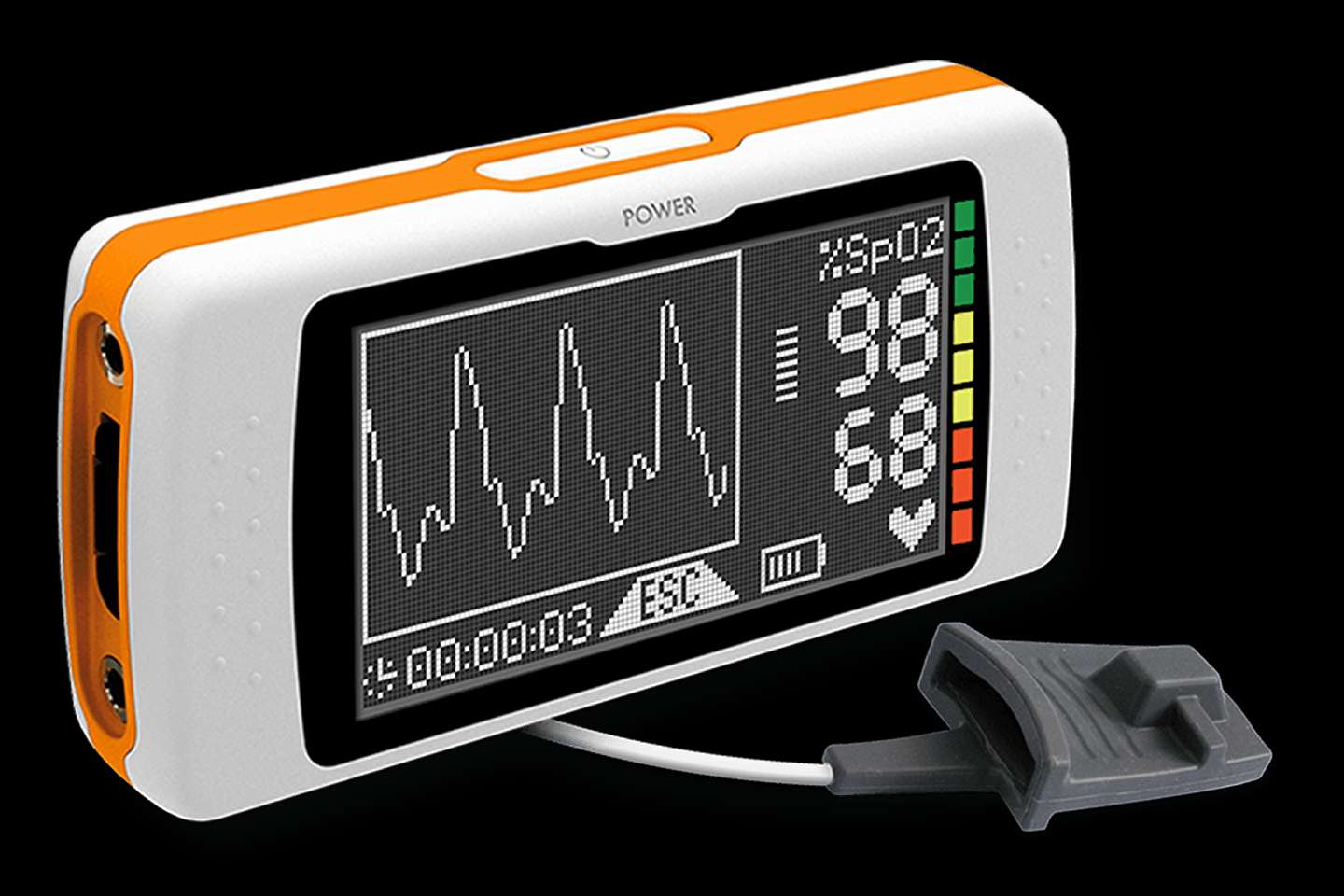

Oximetry (Optional): Include wide range of parameters, SpO2 Events, Pulse Rate Events (Bradycardia, Tachycardia), Step counter, Physical Activity (VMU), Recording time, Analysis time.

CARRY EVERYWHERE

DETAILS

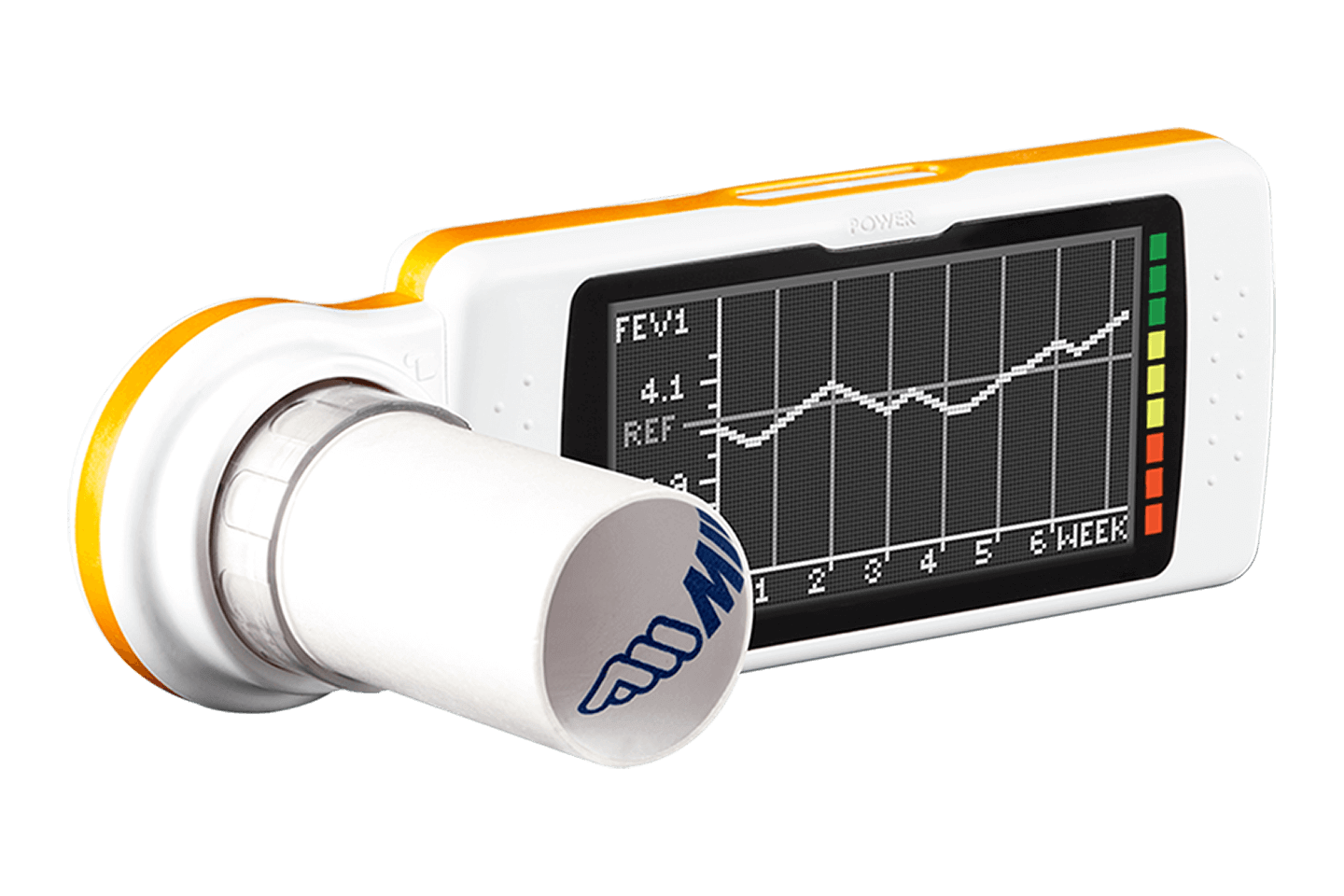

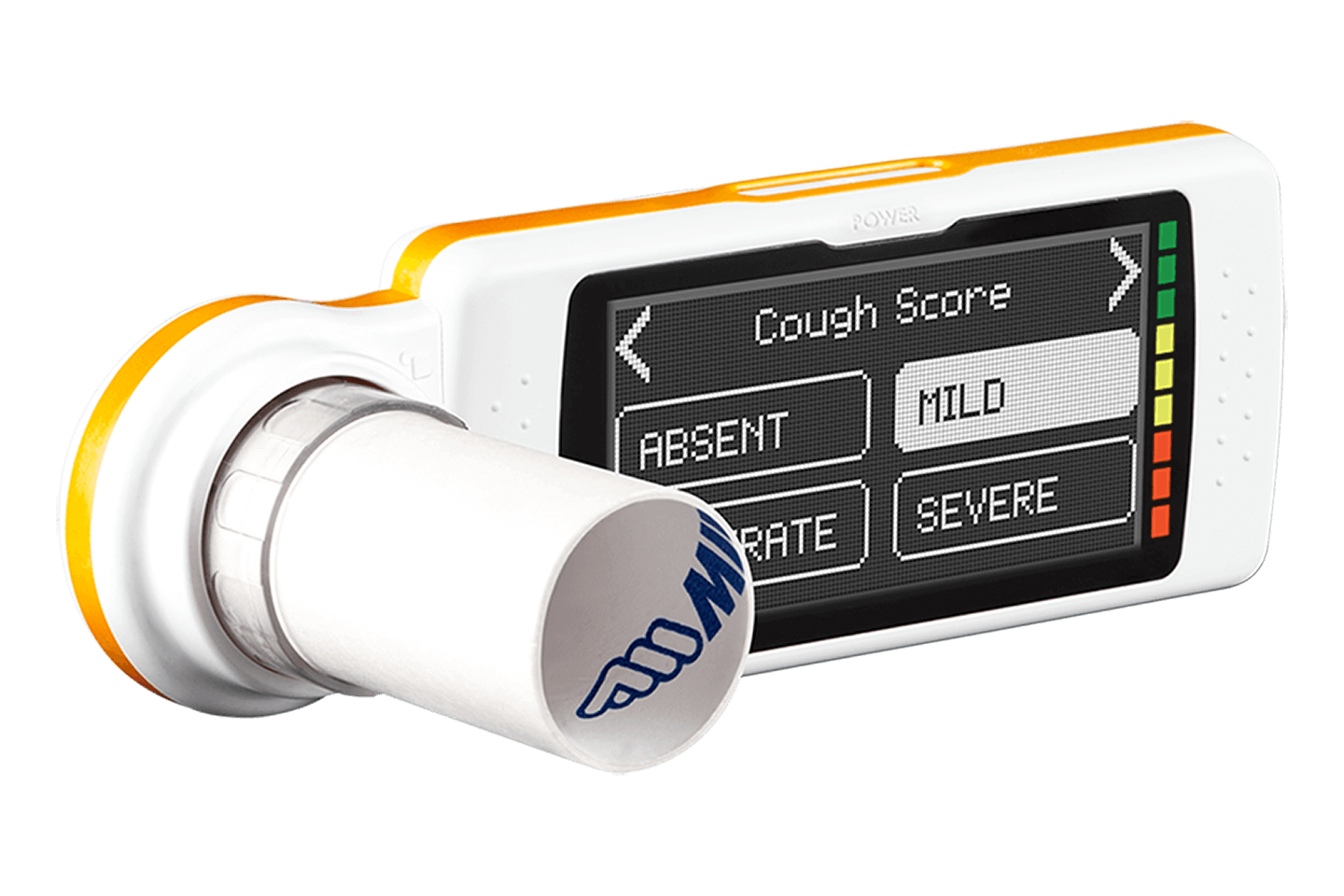

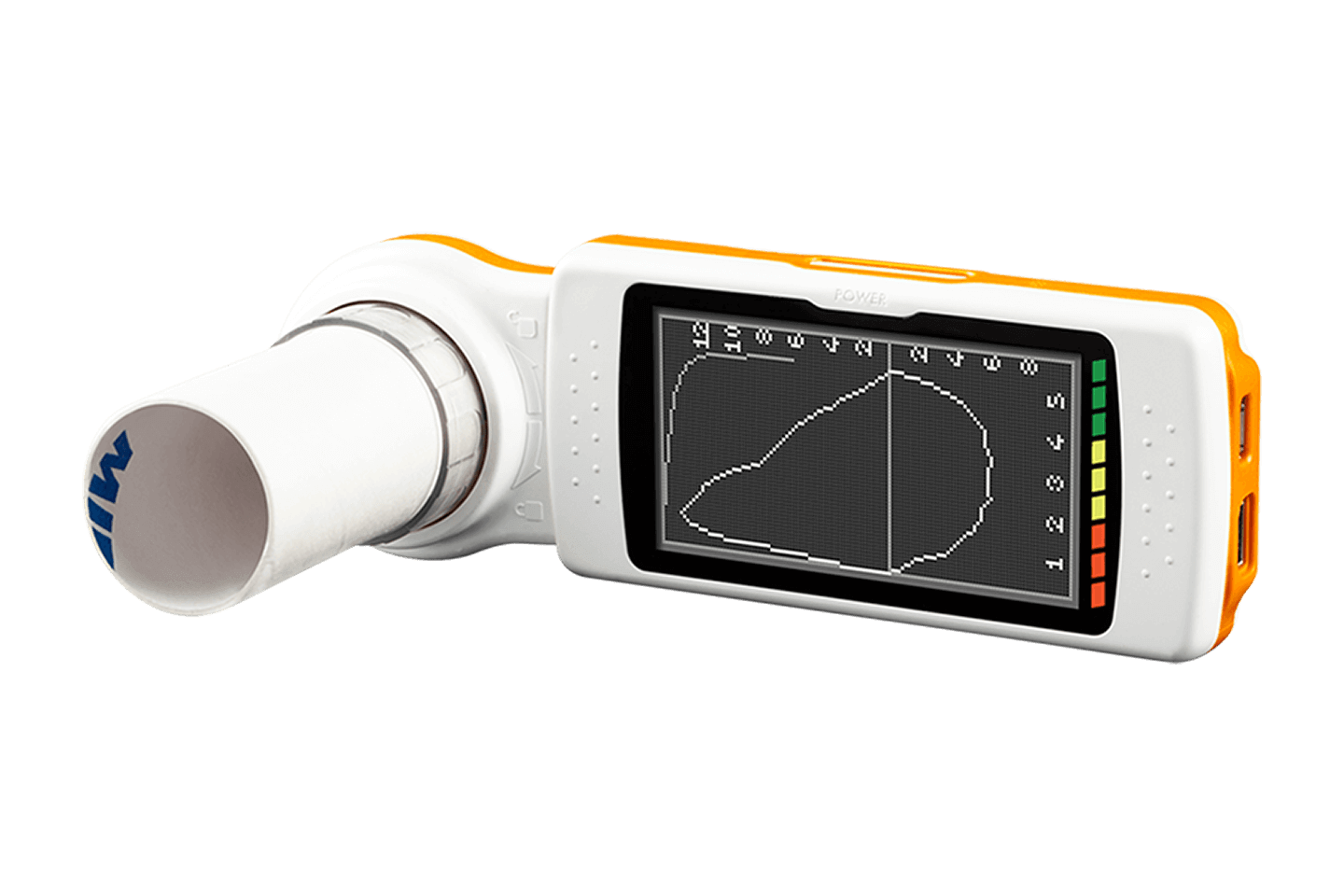

High-Resolution LCD Touchscreen Display, with real time curve and test results.

Long lasting Lithium ION battery, rechargeable via USB.

Internal Storage up to 10.000 Spirometry tests or 300 hrs oximetry.

Dimensions: 5.7×1.9×0.7”; (101x48x16 mm)
Weight: 4.1 oz; (116 gr)

PC CONNECTION

DETAILS

Connect to your PC via USB and Bluetooth 2.0
